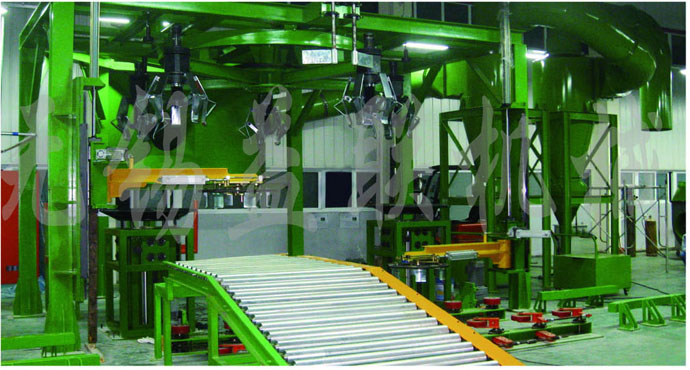

全钢子午胎胎坯内外喷涂生产线





























设备用途 Equipment use

用于全钢子午胎胎坯的隔离剂喷涂

It is used in the dusting agent spray painting of all-steel radial tyre.



设备特点Equipment characteristics

进入辊道输送机、胎坯定中装置、升降装置、输出辊道输送机、旋风除尘装置等组成。

It consists of roller entrance & conveying machine, green tyre centering unit, hoisting unit, output roll conveyor machine and rotary dedusting unit etc.



主要技术参数Main technical parameters

序号 №

胎坯喷涂方式

Green tyre spray painting method

胎坯适用规格Applicable green tyre specification

坯胎适用外径

Applicable green tyre outer diameter

1

内喷/外喷

Inner spray painting/ outer spray painting

18〞-24.5〞

Ф900mm-Ф1250mm

2

坯胎适用高度

Applicable green tyre height

坯胎最大重量

Maximum green tyre weight

胎坯内喷涂时间

Coating time of inner spray painting

3

200mm-500mm

Max.125kg

内喷3-5秒Inner spray painting 3-5s

4

胎坯外喷涂时间

Green tyre outer spray painting time

机械手旋转工位

Manipulator rotating station

胎坯喷涂日产量

Daily output capacity of green tyre spray painting

5

外喷3-6秒

Outer spray painting 3-6s

5工位 5 station

2400条/日2400pcs/day
